Product Details
＋

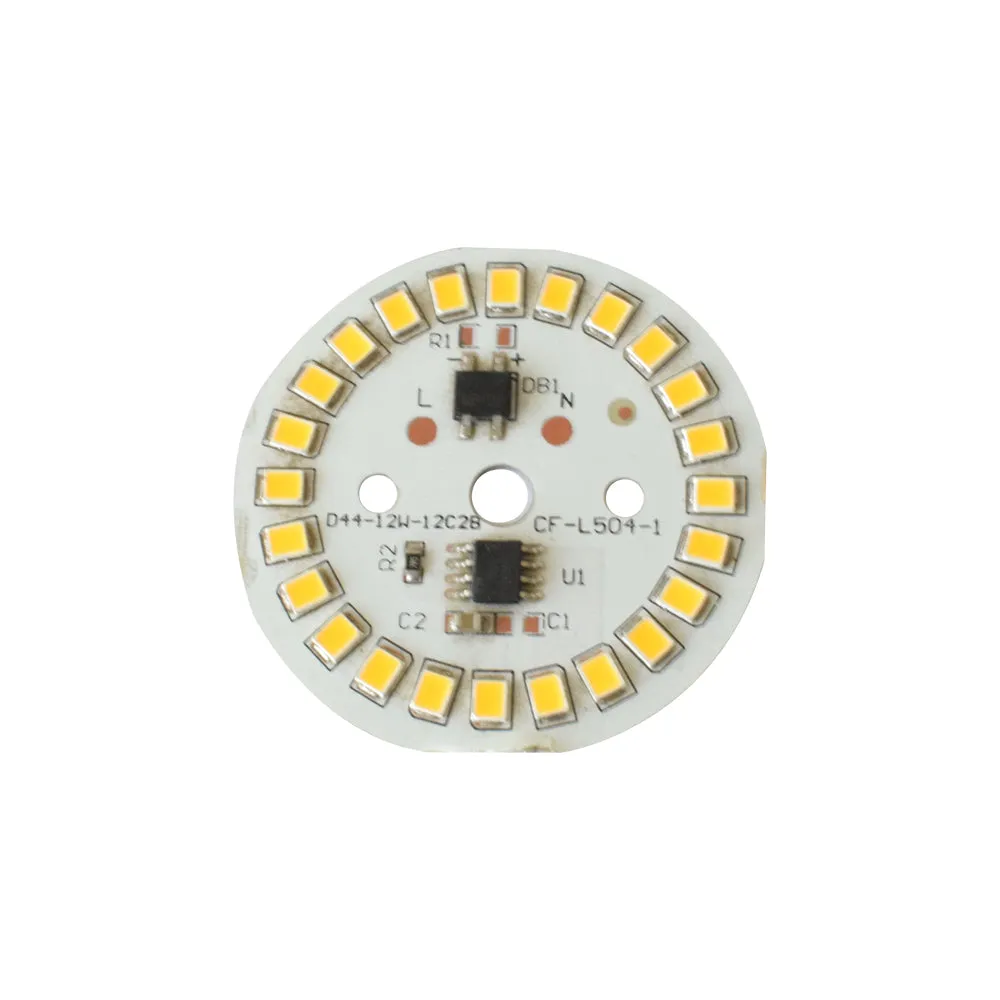

This is a 12W 220V AC Warm-White DOB LED PCB this PCB has two main IC, which are used to drive the full LEDs and one another IC, known as a bridge rectifier. MB10F IC is a Bridge rectifier used to rectify the AC input signal into DC Signal. This IC has four pins, and the polarity has marked on it. This PCB's operating voltage is 220V AC power supply. CD1000AEG is an AC alternator voltage regulator IC. It's 8SOP. It has a total of 8 pins.
Applications:
- Its mainly used in decorative products
- It's used in home decor LEDs
- It's used in traffic LED
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 24 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Model | CF-L504-1 |
| Type | DOB LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 24 |
| Colour | Warm-White |
| LED Diameter | 44mm |
| Power | 12W |
| Wire Mounting Diameter (Small hole) | 3.2mm |
| Mounting Diameter of (large Hole) | 5mm |
| Thickness | 2.0mm |
| Connection Point | Line and Neutral |
| No. of Connecting Point | 02 |
| Country of Origin | China |
